Quick Selection Notes
- Choose GAFB for larger woven acoustic screens that need additional image energy without moving the speakers in front of the image.
- Best for mixed movie, streaming and everyday viewing when extra image brightness is helpful.
- Sound Max 4K woven fabric combining acoustic transparency with a brighter white presentation.
GAFB · Acoustic
SoundFlow Bright Acoustic
A brighter woven acoustic surface for large and versatile cinema spaces.
$999 starting MSRP
- 1.1 nominal gain
- 160° viewing angle
- Standard / long throw / validated UST compatibility
- Fiber woven structure
SKU: GAFB-100-W110
✓ Secure packaging✓ Project consultation✓ Limited warranty
ProjectorStandard / long throw / validated UST
Gain1.1
Viewing160°
Materialwhite ultra-fine woven fabric
Sizes100–230 in
Format16:9
AudioAcoustic transparent
GAFB SERIES
Designed for Brighter Large-Screen Cinema
More brightness for larger acoustic screens.
GAFB is developed for dedicated home theaters requiring additional image brightness on larger screen sizes. The nominal 1.1 gain helps utilize projector output more efficiently while preserving the benefits of acoustically transparent speaker placement behind the screen.
GAFB SERIES
Brighter Images Without Compromising Sound
Higher image energy with natural sound integration.
The fine woven acoustic surface combines increased image brightness with acoustical transparency, allowing front speakers to remain hidden behind the screen while maintaining clear dialogue localization and balanced picture performance across the viewing area.
GAFB SERIES

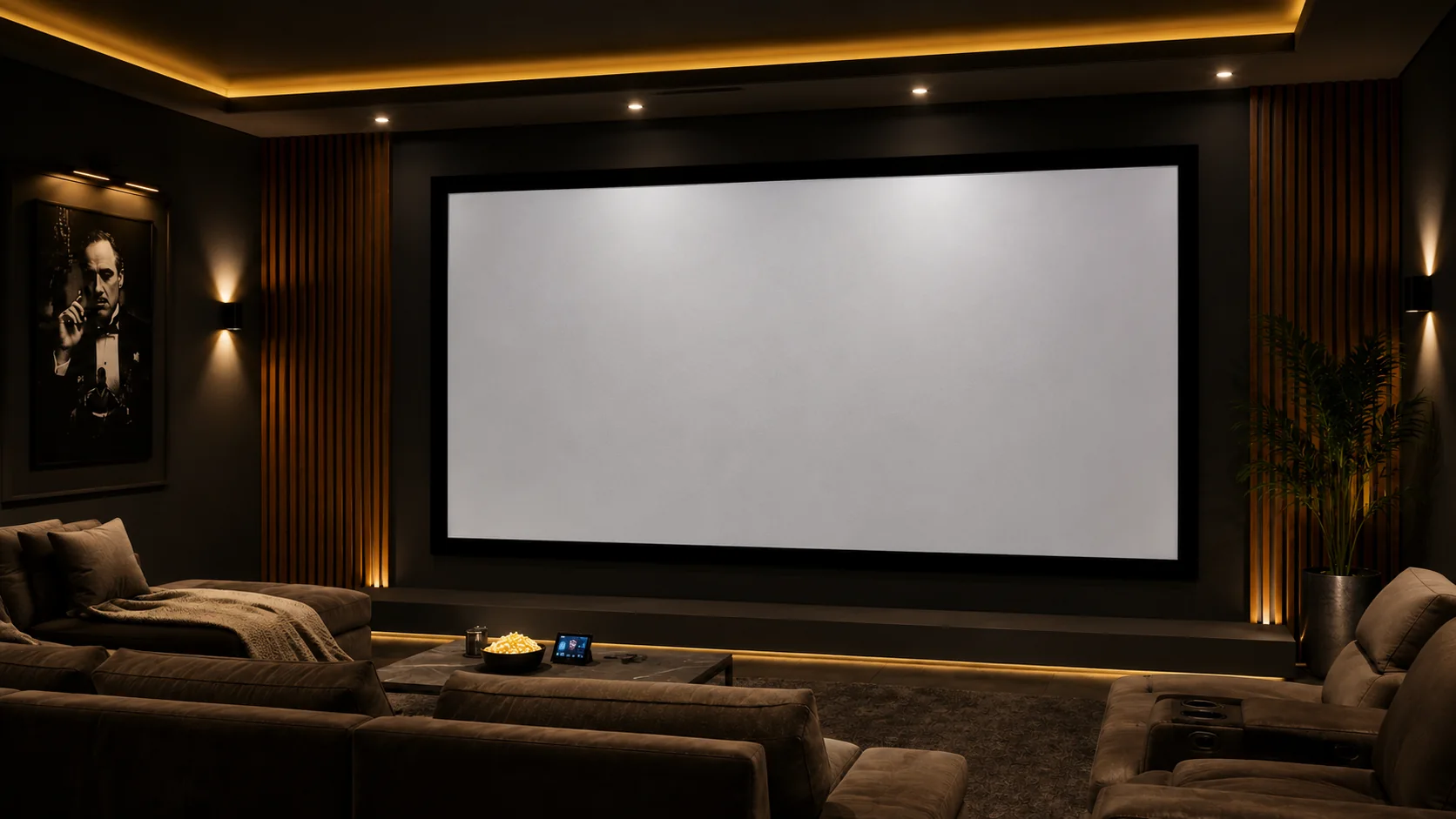

Choose GAFB for Brighter Large Acoustic Screens
Brighter woven acoustic performance for large cinema systems.
SoundFlow Bright is intended for acoustically transparent installations where screen size, throw distance or projector output creates a need for additional reflected light. It supports behind-screen speaker placement while helping maintain image energy across a larger viewing area. The higher-gain behavior should be evaluated with seating width and projector placement to maintain uniformity. Choose SoundFlow Reference for the most neutral reference presentation, or SoundFlow Contrast when the room benefits more from a darker gray surface and improved perceived black level.
- Best for large acoustic screens or lower available projector brightness
- Evaluate seating width and projector alignment when using higher gain
- Compare GAFR for neutral reference reproduction
- Compare GAFC for a gray woven surface with stronger perceived contrast
Not recommended / limitations: Higher gain increases image energy but does not provide daylight rejection.
Compare before selecting: Choose GAFB for additional image energy; choose GAFR for the most neutral woven presentation or GAFC for a darker gray woven surface.
GAFB SERIES
Brighter Images for Large Acoustic Screens

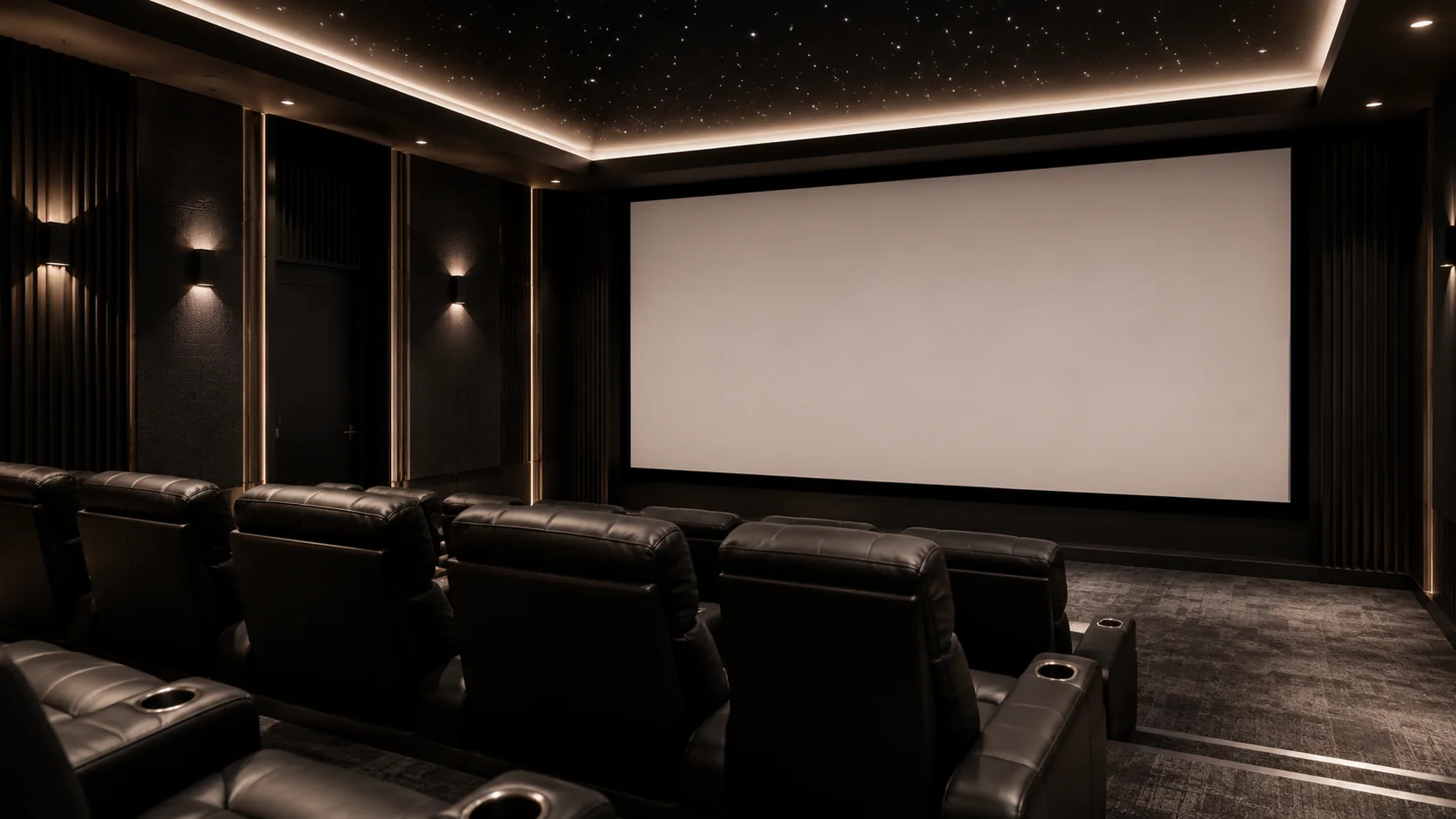

Large private theaters, churches, clubs and screening rooms where behind-screen speakers and additional image energy are required.
SoundFlow Bright Acoustic overview
A brighter woven acoustic surface for large and versatile cinema spaces.
| Supplier material | white ultra-fine woven fabric |
| Material structure | Fiber woven structure |
| Surface color | White |
| Nominal gain | 1.1 |
| Viewing angle | 160° |
| Resolution | 4K+ |
| Projector compatibility | Standard / long throw / validated UST |
| Recommended throw ratio | Broad compatibility |
| Standard sizes | 100–230 in |
| Maximum size | 230 in |
| Frame | Black velvet fixed frame |
| Format | 16:9 standard; custom formats by quote |
| Cleaning | Dry microfiber only unless otherwise specified |
| Warranty | Limited product warranty; project terms apply |

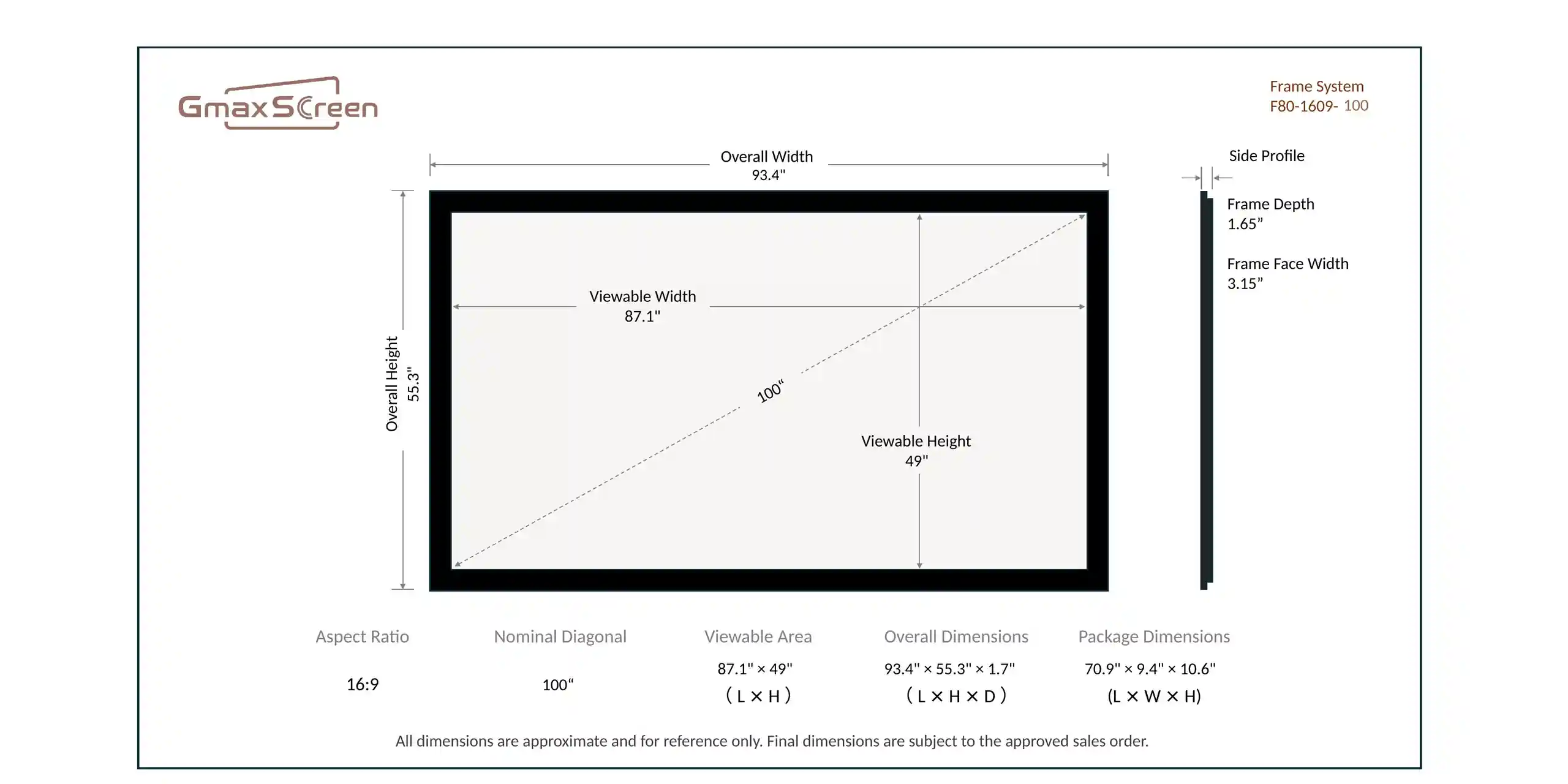

Standard 16:9 sizes are listed below. Custom dimensions and formats require engineering confirmation.
Confirm wall structure, screen centerline, projector geometry and speaker placement before installation. Large sizes may require two installers.
CAD / Dimension Drawing — request from support
Warranty coverage depends on final sales channel, product configuration and project scope. Contact GmaxScreen for the detailed written warranty policy.
Selection guidance
Is this the right screen?
Best For
- Large home cinema
- Multipurpose AV rooms
- Users wanting more brightness than reference weave
Not Recommended For
- Strong ambient light
- Customers needing deep-gray contrast enhancement
- Unverified UST setups
Installation & packaging
Planned for a clean handoff.
01
Measure & verify
Confirm room, wall, projector, throw geometry and desired viewing height.
02
Assemble & tension
Build the frame on a protected surface and tension the screen uniformly.
03
Mount & calibrate
Secure the wall brackets, mount the frame and complete projector alignment.
150″ and larger products may require wood-crate packaging, lift-gate service and separately quoted freight.
Project quote
Configure SoundFlow Bright Acoustic for your room.
Provide the projector model, screen size, wall dimensions, room lighting and audio layout. We will confirm compatibility before final quotation.
