Quick Selection Notes
- Choose GUFR when a PET Crystal UST screen must rise from furniture or an architectural enclosure and disappear after use.
- Designed for UST laser projection in executive lounges, living rooms and multi-purpose interiors.
- PET Crystal optical surface provides the same core screen technology as the flagship fixed-frame UST series.
GUFR · Floor-Rising UST
FloorRise UST
Retractable floor-rising UST screen for spaces where the screen should disappear when not in use.
Request Quote floor-rising UST configuration
- 0.8 nominal gain
- 160° viewing angle
- Ultra-short throw compatibility
- Motorized floor-rising cabinet + PET optical surface
SKU: GUFR-100-D080
✓ Secure packaging✓ Project consultation✓ Limited warranty
ProjectorUltra-short throw
Gain0.8
Viewing160°
MaterialPET Crystal
Sizes100–120 in
Format16:9
AudioStandard screen
GUFR SERIES

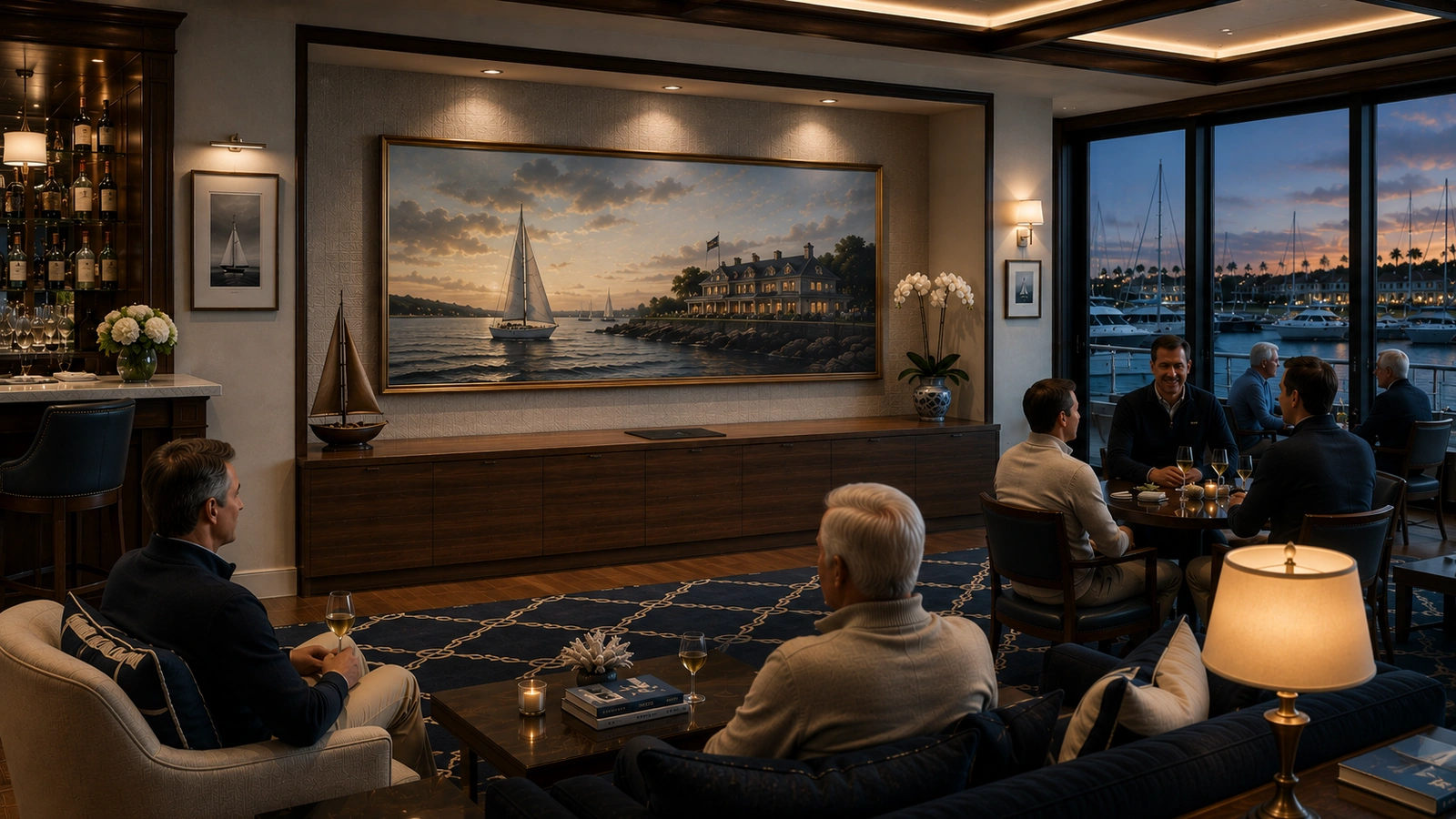

Designed to Disappear After Every Use
A large UST image only when you need it.
The motorized screen rises from a low-profile floor housing and retracts after use, preserving wall space and the visual flexibility of the room.
GUFR SERIES

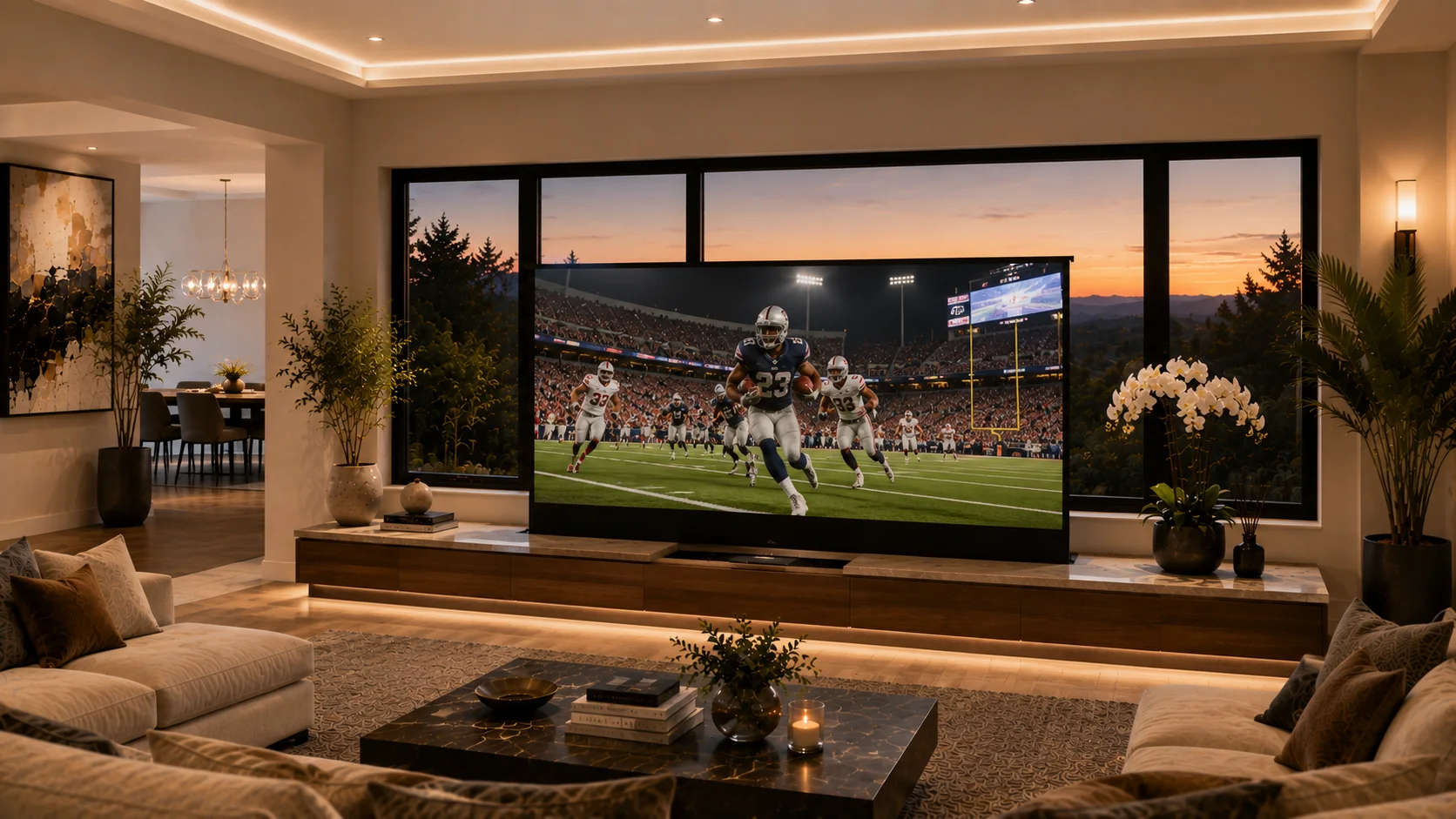

Integrated into Furniture and Flexible Spaces
Freestanding or integrated into furniture and architecture.
The housing may be installed as a freestanding unit or incorporated into custom furniture and architectural millwork.
Typical Applications
- Home living rooms, apartments and condominiums
- Church kids ministry rooms and multipurpose activity rooms
- Student centers, classrooms and training spaces
- Executive offices, meeting rooms and hospitality suites
- Club lounges and temporary exhibition presentations
- Furniture-integrated and movable presentation cabinets
GUFR SERIES

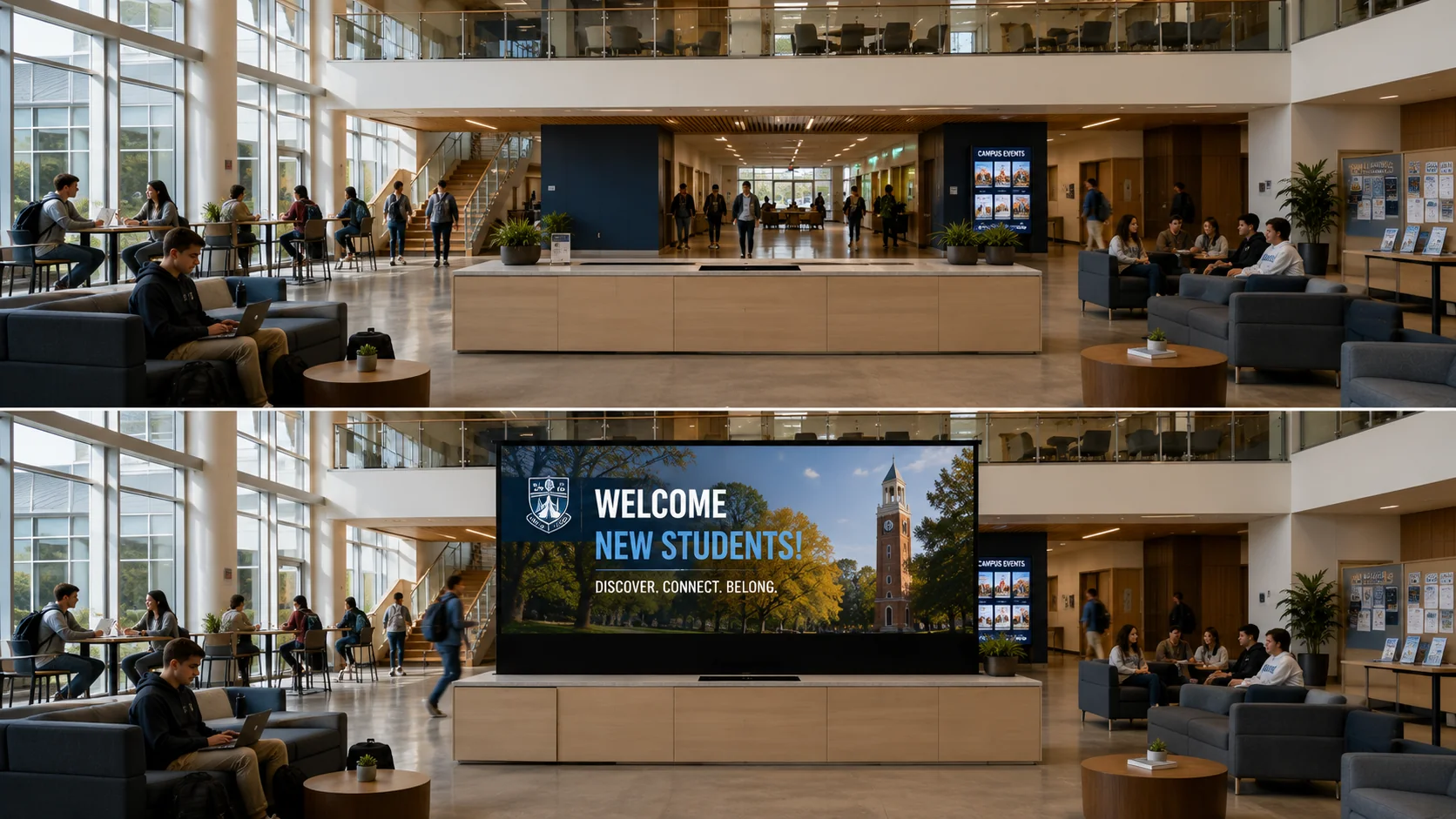

Plan the Screen, Furniture and UST Projector
Coordinated planning for the screen, cabinet and UST projector.
Select FloorRise UST when the room should retain a clean architectural appearance and the screen must disappear after use. The screen, PET Crystal UST surface, lower black drop, cabinet depth and projector location must be coordinated before fabrication. Confirm that the furniture can provide the required depth and ventilation, and that the projector lens remains correctly aligned throughout operation. For permanent wall-mounted installations, compare GUAP or GUFX; for non-UST or project-specific material requirements, compare FloorRise Architectural.
- Plan the screen cabinet and UST projector as one integrated assembly
- Confirm furniture depth, ventilation and access for service
- Maintain the specified lower black drop and clear rising path
- Use GFAR when the project requires a standard-throw projector or a different screen material
Not recommended / limitations: Not recommended where cabinet depth, ventilation, projector alignment or a clear rising path cannot be provided.
Compare before selecting: Choose GUFR for a dedicated PET Crystal UST floor-rise system; choose GFAR for non-UST projection or project-specific materials.
GUFR SERIES
Large-Screen Entertainment That Disappears After Use
Living rooms, offices, hospitality spaces, exhibitions, schools, churches, country clubs and yacht clubs requiring a hidden UST screen.
FloorRise UST overview
Retractable floor-rising UST screen for spaces where the screen should disappear when not in use.
| Supplier material | PET Crystal |
| Material structure | Motorized floor-rising cabinet + PET optical surface |
| Surface color | Dark optical gray |
| Nominal gain | 0.8 |
| Viewing angle | 160° |
| Resolution | 4K+ |
| Projector compatibility | Ultra-short throw |
| Recommended throw ratio | UST only |
| Standard sizes | 100 / 120 in |
| Maximum size | 120 in |
| Frame | Motorized floor-rising cabinet |
| Format | 16:9 standard; custom formats by quote |
| Cleaning | Dry microfiber only unless otherwise specified |
| Warranty | Limited product warranty; project terms apply |
Standard 16:9 sizes are listed below. Custom dimensions and formats require engineering confirmation.
Confirm wall structure, screen centerline, projector geometry and speaker placement before installation. Large sizes may require two installers.

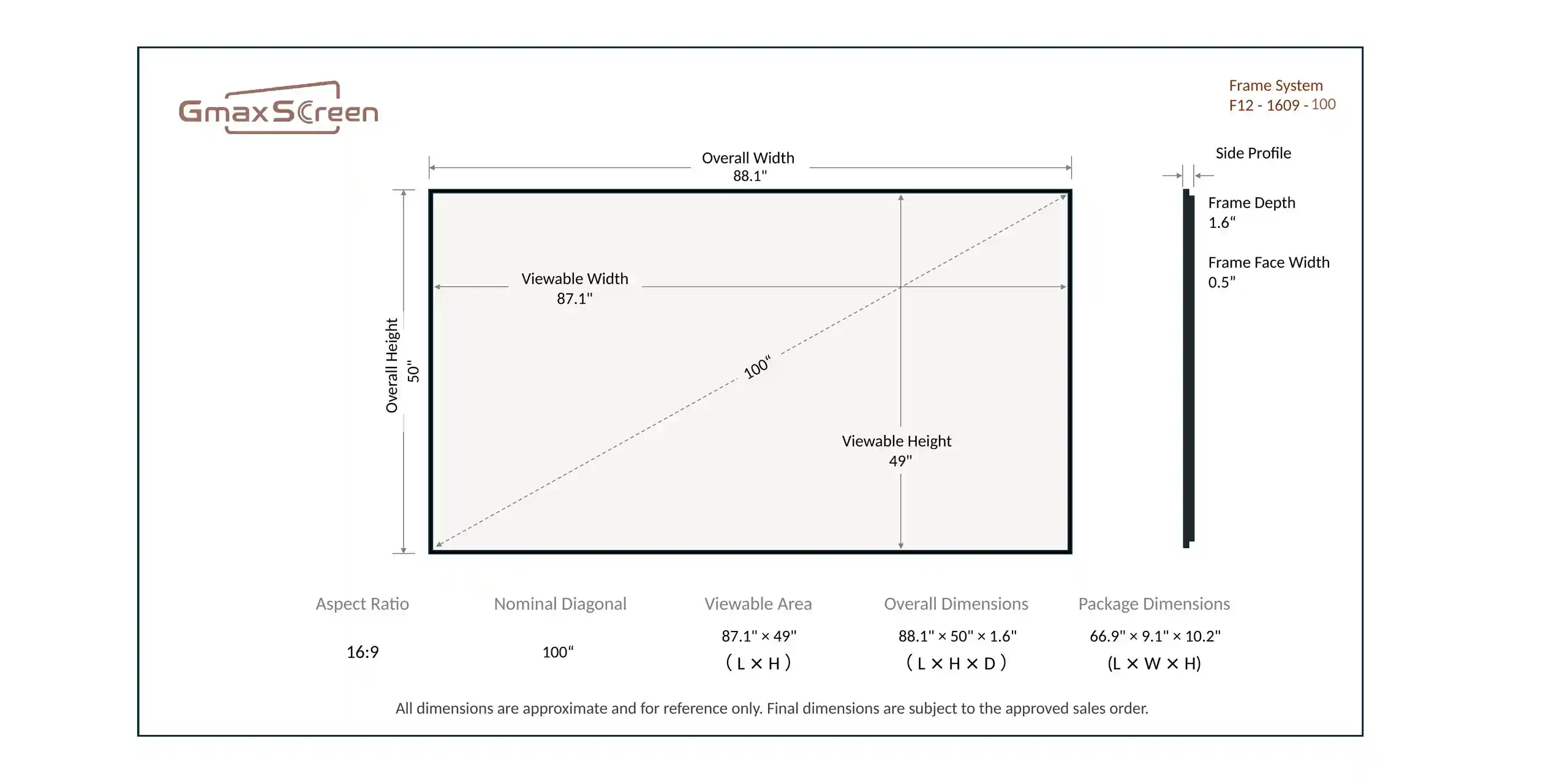

CAD / Dimension Drawing — request from support
Warranty coverage depends on final sales channel, product configuration and project scope. Contact GmaxScreen for the detailed written warranty policy.
Selection guidance
Is this the right screen?
Best For
- Living rooms with ambient light
- UST laser projectors
- Users prioritizing black level and color saturation
Not Recommended For
- Standard or long-throw projectors
- Rear projection
- Unverified projector/screen pairings
Installation & packaging
Planned for a clean handoff.
01
Measure & verify
Confirm room, wall, projector, throw geometry and desired viewing height.
02
Assemble & tension
Build the frame on a protected surface and tension the screen uniformly.
03
Mount & calibrate
Secure the wall brackets, mount the frame and complete projector alignment.
150″ and larger products may require wood-crate packaging, lift-gate service and separately quoted freight.
Project quote
Configure FloorRise UST for your room.
Provide the projector model, screen size, wall dimensions, room lighting and audio layout. We will confirm compatibility before final quotation.
